Anasayfa > Ürünler > Benzinli motor > 0.3kw-0.85kw Elemax 950 Taşınabilir Benzinli Jeneratör, Honda Motoru,

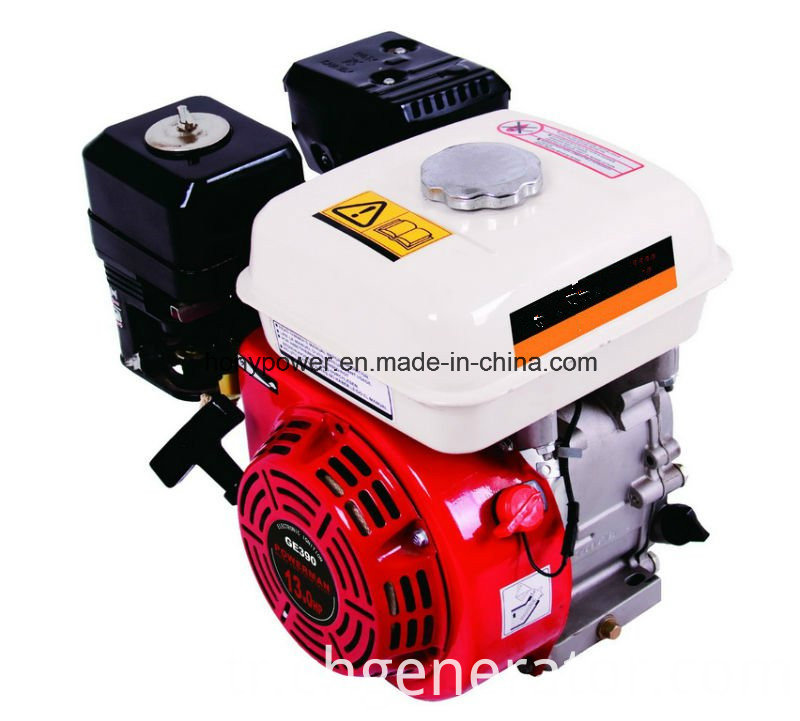

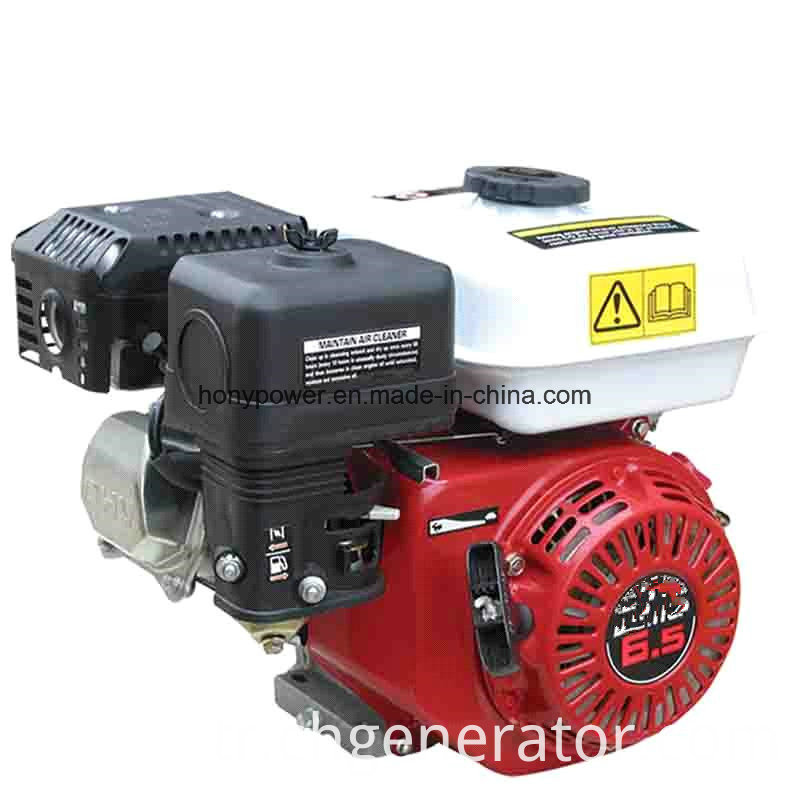

0.3kw-0.85kw Elemax 950 Taşınabilir Benzinli Jeneratör, Honda Motoru,

Verimlilik:
50000pieces/Year
Menşe yeri:
Fuan, Çin
Yetenek kaynağı:
50000pieces/Year
  • Mr. Catherine Zhou

Temel bilgi

model numarası.:  ELEMAX950

Ürün Açıklaması

Model NO .: ELEMAX950 Hız: Düşük Hızda Emme Basıncı Darbe: Doğal Emilen Yakıt: Benzinli Silindir Düzen Formu: L Tipi: Dış Yanma Motor Özellikleri: Tekne Motor / Küçük Benzinli Motor / 4 Zamanlı Motor HS Kodu: 8501610000 Ateşleme Modu: Elektrikli Ateşleme Soğutma Silindirleri: Hava Soğutmalı Pistonlu Hareket: Pistonlu Kanat Sayısı: 4 Zamanlı Silindir Sayısı: 4 Silindirli Ticari Marka: HONY POWER Orijin: Fuan, Çin 0.3kw-0.85kw Elemax 950 Taşınabilir Benzinli Jeneratör, Honda Motor,
0.3kw-0.85kw Elemax 950 Portable Gasoline Generator, Honda Engine,0.3kw-0.85kw Elemax 950 Portable Gasoline Generator, Honda Engine,0.3kw-0.85kw Elemax 950 Portable Gasoline Generator, Honda Engine,0.3kw-0.85kw Elemax 950 Portable Gasoline Generator, Honda Engine,
Model No. hy154F HY160 HY200 HY210 HY270 HY390 HY420
Description                                                                                                                                                                                   Gasoline Engine
Type vertical single cylinder, 4-stroke, forced air-cooling,SV, horizontal shaft                                                                    25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling
Cylinder Dia. × Stroke 54mm×38mm 68mm × 45mm 68mm × 54mm 70mm ×54mm 77mm ×58mm 88mm ×64mm 90mm ×66mm
Displacement 87ml 163ml 196ml 210ml 270ml 389ml 420ml
Compression Ratio 7.7:1 8.5:1 8.5:1 8.5:1 8.2:1 8.0:1 8.0:1
Max. Power Output 2.8hp / 2.2kw / 3600rpm 5.5hp / 4.1kw / 3600rpm 6.5hp / 4.8kw  / 3600rpm 7.0hp / 5.1kw  / 3600rpm 9.0hp / 6.75kw  / 3600rpm 13hp / 9.6kw  / 3600rpm 15hp / 11.2kw / 3600rpm
Rated Power Output 1.9hp / 1.4kw / 3600rpm 4.85hp / 3.61kw / 3600rpm 5.8hp / 4.3kw  / 3600rpm 6.0hp / 4.4kw  / 3600rpm 8.2hp / 6.12kw  / 3600rpm 11.7hp / 8.6kw / 3000rpm 14hp / 10.5kw / 3000rpm
Max. Torque 3.5N.M. / 2500rpm 10.8N.M / 2500rpm 13.2N.M / 2500rpm 14N.M / 2500rpm 19.1N.M / 2500rpm 26.5N.M / 2500rpm 28N.M / 2500rpm
Ignition Mode Non-Contact Transistor Magneto                                                                                                       Non-Contact Transistor Magneto
Starting Mode Options                                                                                                                                                           Recoil / Electric
Engine Oil Capacity 0.4L 0.6L 0.6L 0.6L 1.1L 1.1L 1.1L
Fuel Capacity 1.5L 3.6L 3.6L 3.6L 6.0L 6.5L 6.5L
Recommended Fuel                                                                                                                                                      unleaded gasoline
Recommended Engine Oil                                                                                                                                                              SAE 10W-30
Fuel Consumption Rate 260g / hp.h 360g / kw.h 360g / kw.h 360g / kw.h 325g / kw.h 325g / kw.h 374g / kw.h
Carburetor Type                                                                                                                                                           Float Carburetor
Fuel Suppling Mode                                                                                                                                                              gravity feed
Lubrication Mode                                                                                                                                                              Splashing
Power Output Form                                                                                                                                                             crank shaft 1:1
Output End of Crank Shaft                                                                                                                                       Metric Thread / British Thread / Keyslot
Crank Shaft Rotation Direction                                                                                                                                                Clockwise (view from flywheel)
Air Filter Type                                                                                                                                     Semi-Dry / Oil Bath / Semi-Dry+Oil Bath
Dimension 315×310×320mm 390mmx330mmx340mm 390mmx330mmx340mm 390mm×330mm×350mm 515mm×420mm×470mm 465mmx410mmx455mm 515mm×420mm×490mm
N.W./G.W. 10kgs / 11kgs 15kgs / 16kgs 15kgs / 16kgs 15.5kgs / 16.5kgs 25kgs / 26kgs 31kgs / 33kgs 31.5kgs / 33.5kgs
