Anasayfa > Ürünler > Benzinli Su Pompası > 6.5HP Honda Motorlu 3in Benzinli Su Pompası (WP30)

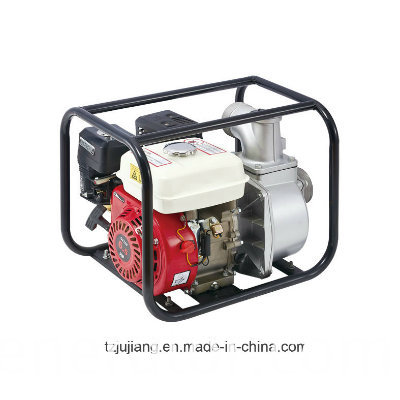

6.5HP Honda Motorlu 3in Benzinli Su Pompası (WP30)

Verimlilik:
800 PCS/Day
Menşe yeri:
Zhejiang, Çin
Yetenek kaynağı:
800 PCS/Day
  • Mr. Catherine Zhou

Temel bilgi

model numarası.:  WP30

Ürün Açıklaması

Model No: WP30 Yapı: Pistonlu Pompa Tipi: Bıçak Pompası Teorisi: Santrifüj Pompa Ağırlığı: 25kg Marka: JUJIANG Menşei: Zhejiang, Çin Malzeme: Dökme Demir Gücü: Benzinli Uygulama: Tarımsal Sulama Pompası Pompası: 3inç Pompa Motoru: Honda 6.5HP Motor Şartname: CE SONCAP HS Kodu: 8413709910
3inch Gasoline Water Pump (WP30) with 6.5HP Honda Engine

3 inç Benzinli Su Pompası
Motor: JJ168 6.5HP hava soğutmalı 1 silindirli 4 zamanlı OHV motor
Deplasman: 196cc
Yakıt deposu kapasitesi: 3.6L
Yağ kapasitesi: 0.6L
Emiş: 7m
Kafa kaldırıcısı: 30m
Çıkış: 60m3 / sa
Boyutu: 513x383x415mm
Net ağırlık: 25kg
20GP yük: 330 adet





CE, SONCAP, ISO9001: 2000 belgesi ile.
Makul fiyata kaliteli mal tedarikinde eminiz.
Uzun vadeli, verimli ve istikrarlı işbirliğinizi dört gözle bekliyoruz.
Herhangi bir ilginiz varsa lütfen bana ulaşın, sağolun.
Model WP15 WP20 WP30 WP40
Outlet Size(mm) 40 50 80 100
Inlet Size(mm) 40 50 80 100
Speed (rpm) 3600 3600 3600 3600
Q. max(m3/h) 27 21 60 80
H. max (m) 20 30 30 25
Suction(m) 7 7 7 7
Maximum Power Output (HP) 2.5 5.5 6.5 11
Engine Model JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm) 52x38 68x45 68x54 88x64
Displacement (cc) 80.7 163 196 389
Compresslon Ratlo 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type semi-dry oil bath type
Fuel tank Capacity (L) 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) 0.37 0.6 0.6 1.1
Net Weight(kg) 18/39.6 27/59.4 30/66 47103.4
Dimensions LxWxH(mm) 450x340x355 480x370x415 520x390x460 615x445x52
