Anasayfa > Ürünler > Benzinli Su Pompası > CE Onay 4inch / 13HP Demir Kam mili Benzinli Su Pompası (WP-40)

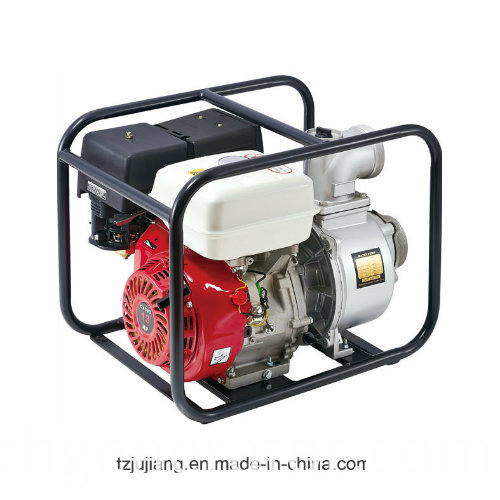

CE Onay 4inch / 13HP Demir Kam mili Benzinli Su Pompası (WP-40)

Verimlilik:
800 PCS/Day
Menşe yeri:
Zhejiang, Çin
Yetenek kaynağı:
800 PCS/Day
  • Mr. Catherine Zhou

Temel bilgi

model numarası.:  WP-40

Ürün Açıklaması

Model No: WP-40 Yapısı: Tek Kademeli Pompa Tipi: Bıçak Pompası Teorisi: Santrifüj Pump Cam: Demir Kamera Marka: JUJIANG Menşei: Zhejiang, Çin Malzeme: Dökme Demir Gücü: Benzinli Motor Uygulama: Tarımsal Sulama Motor Gücü: 13HP Sertifika : CE Şartnamesi: CE / SONCAP HS Kodu: 8413709910
CE Approval 4inch/13HP Iron Camshaft Gasoline Water Pump (WP-40)
Motor: JJ188 13HP hava soğutmalı 1 silindirli 4 zamanlı OHV motor
Demir: Dökme Demir
Deplasman: 389cc
Yakıt deposu kapasitesi: 6.5L
Yağ kapasitesi: 1.1l
Emiş: 7m
Kafa kaldırıcısı: 28m
Çıkış: 80m3 / sa
Boyutu: 640 × 465 × 515mm
Net ağırlık: 51kg
20GP yük: 180 adet
CE Onay 4inch / 13HP Dökme Demir Benzinli Su Pompası (WP-40)


4 İnç Benzinli Su Pompası
CE, SONCAP, ISO9001: 2000 belgesi ile.
Makul fiyata kaliteli mal tedarikinde eminiz.
Uzun vadeli, verimli ve istikrarlı işbirliğinizi dört gözle bekliyoruz.
Herhangi bir ilginiz varsa lütfen bana ulaşın, sağolun.
Model WP15 WP20 WP30 WP40
Outlet Size(mm) 40 50 80 100
Inlet Size(mm) 40 50 80 100
Speed (rpm) 3600 3600 3600 3600
Q. max(m3/h) 27 21 60 80
H. max (m) 20 30 30 25
Suction(m) 7 7 7 7
Maximum Power Output (HP) 2.5 5.5 6.5 11
Engine Model JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm) 52x38 68x45 68x54 88x64
Displacement (cc) 80.7 163 196 389
Compresslon Ratlo 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type semi-dry oil bath type
Fuel tank Capacity (L) 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) 0.37 0.6 0.6 1.1
Net Weight(kg) 18/39.6 27/59.4 30/66 47103.4
Dimensions LxWxH(mm) 450x340x355 480x370x415 520x390x460 615x445x52
