model numarası.: WDP50/80/100

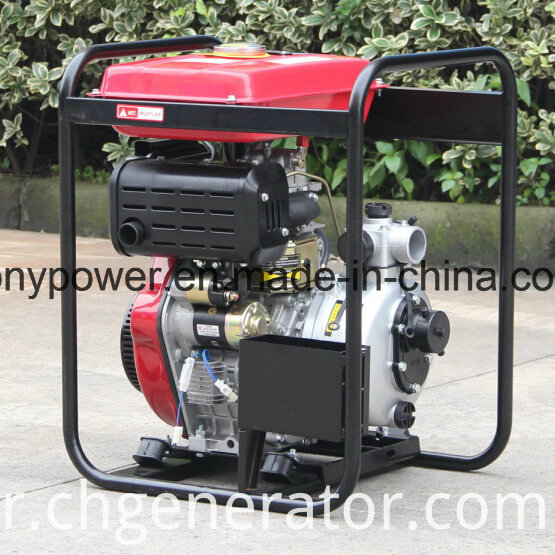

2 inç 3 inç 4 İnç Dizel Motor, Tarım Dizel Su Pompası Özellikleri
1. Ekonomik, güvenilir ve dayanıklı
2. Kolay strt, dayanıklı OHV, yüksek kalite
3. Düşük yağ tespit edildiğinde motoru otomatik olarak kapatmak için yağ alarmı
4. Hafif fakat güçlü alüminyum alaşımdan yapılmış pompa gövdesi
5. Dökme demir sarmal ve pervanesi
6. Yüksek kaliteli seramik mekanik sealling
7. Maks. 26 m'lik pompa kaldırma gücü, Max. 7m emiş
Güvenilir kalite, makul fiyat, arzu edilen hizmet
Talebinizi bize söyleyin, neyi isterseniz sağlayın
Şimdi bize ulaşın, bir anlaşma yapalım .........
|Inlet & outlet dimension (mm) (in)||50(2")||80(3")||100(4")|
|Rated capacity (m³/h)||22||30||40|
|Rated pump lift (m)||25||28||25|
|Suction time (s/4m)||80||120||180|
|Max. suction height (m)||8||8||8|
|Noise lever [dB(A)/7m)]||74||76||79|
|Starting system||Recoil/electric start||Recoil/electric start||Recoil/electric start|
|Fuel consumption rate(g/kW.h)||288||285||281|
|Net weight (kg)||38.5||49||62.5|
